The distinction between PTFE sheets and Expanded PTFE (EPTFE) sheets lies primarily in their microstructure, resulting from different manufacturing processes, which leads to significantly different properties and applications. Here’s a structured comparison:
Core Structural Difference
PTFE Sheet: Solid, dense, non-porous structure.

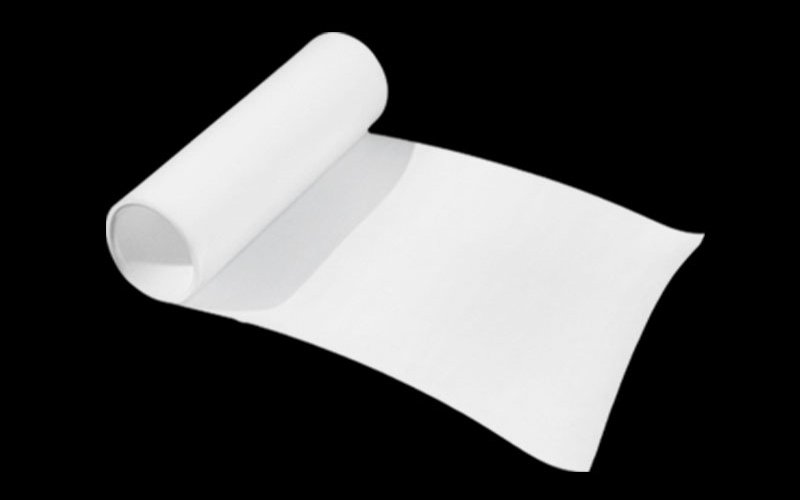

E-PTFE Sheet: Created by stretching/expanding PTFE, forming a microporous, fibrillated network of nodes interconnected by fine fibrils.
Key Property Differences
| Property | PTFE Sheet | E-PTFE Sheet |
| Porosity | Non-porous, impermeable | Highly microporous, permeable |
| Density | Higher density (typically 2.1-2.3 g/cm³) | Lower density (typically 0.4-1.5 g/cm³) |
| Compressibility | Low | High – conforms to uneven surfaces |
| Flexibility | Stiff | Soft & Highly Flexible |
| Breathability | None | Excellent – allows vapor/gas passage |
| Tensile Strength | Moderate | Higher (due to fibril orientation) |
| Creep Resistance | Better | Lower |
| Filtration | None | Excellent (controlled pore size) |
Primary Applications Differences
PTFE Sheet:
1.Linings: Chemical tanks, chutes (impermeability critical).
2.Electrical Insulation: Barrier insulators, spacers (complete dielectric barrier).
3.Low-Friction Bearings & Slides: Low-stress applications.
4.Non-stick Surfaces: Backup for molded parts.
E-PTFE Sheet:
1.Sealing/Gasketing: Superior seal on damaged/flanged surfaces (compressibility/conformability).
2.Filtration: Air, liquids, vents (microporosity).
3.Medical Implants: Vascular grafts, surgical patches (tissue ingrowth, biocompatibility).
4.Protective Apparel: Waterproof, breathable membranes (Gore-Tex® type).
5.Vents & Valves: Pressure equalization while blocking contaminants.
6.Advanced Composites: Reinforcement layer
Critical Selection Considerations & Precautions
Permeability: E-PTFE’s porosity allows vapor/gas/microbial passage unacceptable where absolute barrier is needed (use PTFE).
Surface Imperfections: E-PTFE excels at sealing uneven surfaces; PTFE requires near-perfect flanges.
Mechanical Load: PTFE has better creep resistance for sustained high loads. ePTFE’s high compressibility isn’t suited for heavy bearing.
Processing: Machining PTFE is straightforward. E-PTFE requires careful handling to avoid tearing or permanently compressing its delicate structure.
Cost: E-PTFE is generally more expensive. Use PTFE where its properties suffice.
Certifications: Verify specific grades meet requirements (FDA, USP Class VI, NSF, 3-A Dairy) for food, pharma, or medical use.
Choosing the Right Material
Use PTFE Sheet when you need: Absolute impermeability, a rigid barrier, high dielectric strength insulation, or low-stress sliding surfaces in chemically harsh environments.
Use E-PTFE Sheet when you need: Conformability to imperfect surfaces for sealing, controlled permeability (breathability, filtration), tissue integration in implants, high tensile strength in a flexible form, or compressibility for gasketing.
