Product Description:

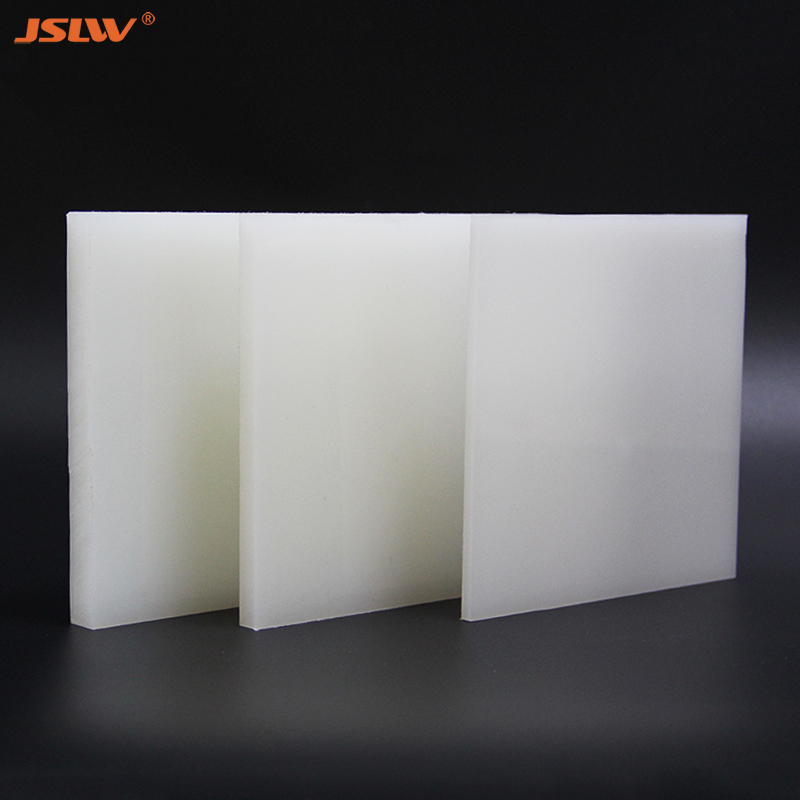

PVDF sheet combines good mechanical, thermal and electrical properties with excellent chemical resistance. It has good resistance to UV, corrosion and radiation and can be used in food contact applications. It also has good wear resistance and sliding properties making it a versatile engineering material.
Main Properties & Application:
·Temperature: -30°C up to +150°C.
·Excellent resistance to UV and weathering.
·Very good electrical insulation properties.
·High purity and good resistance to chemicals.
·Good resistance to wear.
·Excellent weldability.
·FDA approved for contact with food.
PVDF is widely used in chemical tank linings,semiconductor,pipe fittings,electric plating,sealing,pump valve fluid,photovoltaic(PV),water treatment etc.
Technical Data For PVDF Sheet:
Property | Norm | Value |
Density(g/cm³) | ISO1183 | 1.78 |
Tensile Strength at Break(Mpa) | ISO527 | 42~55 |
Modulus of Elasticity(Gpa) | ISO527 | 1.9~2.2 |
Elongation at break(%) | ISO527 | 20~50 |
Hardness Shore(Shore D) | Durometer | 80 |
Temperature Range(°C) | / | -30~150 |
Coefficient of Linear Thermal Expansion(10-4/°C) | ISO11359 | 0.42 |
